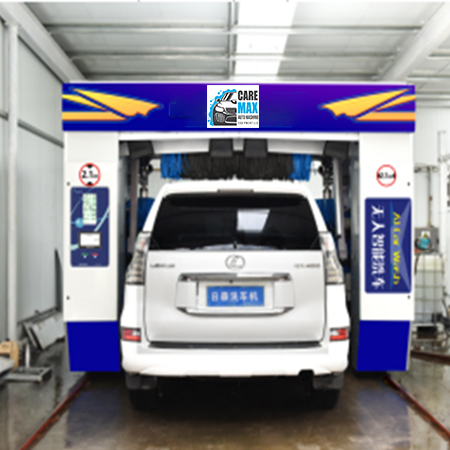

Fully Automatic Rollover Car Wash Machine (Brush) CM-340
Features
- Shampoo(Foams) sprinkling and wax washing systems.
- Five(5) brushes with foam material and lifelong warranty.
- Four(4) solid blowers dry the car body completely and precisely.
- PLC control system & humanized operate pannel.
- Intelligent avoidance system to wash all kinds of car types.
- Main technology and machine design from Japan.
- Many kinds of washing ways to meet different car wash needs.
- Hop-dip galvanized steel frame keep the whole machine antirust.
Specifications
| Overall dimensions | 2610x3600x2815mm |
| Assembling range | 10870x4100x2815mm |
| Moving range | 11000x4100mm |
| Available size for car | 5200x2100x2100mm |
| Available car to wash | car/jeep/coach within 10seats |
| Washing time | 2’58″(1 rollover)/4’48″(2 rollover) |
| Car wash capacity | 15-20cars/hour |
| Mains voltage | 3PHASE AC380V /50HZ |
| Total power | 17.6 KW |
| Water supply | DN25mm/Waterflow rate ≥ 80L/min |
| Air pressure | 0.75-0.9Mpa/Airflow rate ≥ 0.1m³/min |
| Water/electricity consumption | 75L/Car, 0.3kw/Car |
| Shampoo consumption | 7ml/Car |
| Water wax consumption | 12ml/Car |
5 Brushes+4 Solid blowers
