caremax

Archives: Products

Fully Automatic Rollover Bus Wash Machine CB-730

rollover-buswash-system-730

Fully Automatic Rollover Bus Wash Machine CB-730

Features

  • Total three nylon brushes.
  • Including clean water washing.
  • Detergent shampoo washing.
  • PLC control systems.
  • Waterproof IP67 Siti brand motor.
  • All bearing and components with high end quality.
  • Fully automatic to wash the bus & truck thoroughly.
  • With on-site installation and operate training.

Specifications

Overall dimensions2150x4680x5510mm
Assembling range25000x6580mm
Moving range 25000x5114mm
Available size for bus18000x2700x4200mm
Available car to washbus,double-decker bus
Washing time–
Car wash capacity15-20buses/hour
Mains voltage3PHASE AC380V /50HZ
Total power9 KW
Water supplyDN25mm/Waterflow rate ≥ 120L/min
Water/electricity consumption220L/Bus, 0.59kw/Bus
Shampoo consumption25ml/Car

FOB QINGDAO With three brushes.

Automatic Rollover Car Wash Machine CM-340

rollover-carwash-system-cf-340

Fully Automatic Rollover Car Wash Machine (Brush) CM-340

Features

  • Shampoo(Foams) sprinkling and wax washing systems.
  • Five(5) brushes with foam material and lifelong warranty.
  • Four(4) solid blowers dry the car body completely and precisely.
  • PLC control system & humanized operate pannel.
  • Intelligent avoidance system to wash all kinds of car types.
  • Main technology and machine design from Japan.
  • Many kinds of washing ways to meet different car wash needs.
  • Hop-dip galvanized steel frame keep the whole machine antirust.

Specifications

Overall dimensions2610x3600x2815mm
Assembling range10870x4100x2815mm
Moving range 11000x4100mm
Available size for car5200x2100x2100mm
Available car to washcar/jeep/coach within 10seats
Washing time2’58″(1 rollover)/4’48″(2 rollover)
Car wash capacity15-20cars/hour
Mains voltage3PHASE AC380V /50HZ
Total power17.6 KW
Water supplyDN25mm/Waterflow rate ≥ 80L/min
Air pressure0.75-0.9Mpa/Airflow rate ≥ 0.1m³/min
Water/electricity consumption75L/Car, 0.3kw/Car
Shampoo consumption7ml/Car
Water wax consumption12ml/Car

5 Brushes+4 Solid blowers

Automatic Rollover Car Wash Machine-370

rollover-carwash-system

Fully Automatic Rollover Car Wash Machine (Brush) ( 370)

Features

  • Shampoo(Foams) sprinkling and wax washing systems.
  • Four(4) blowers dry the car body completely and precisely.
  • PLC control system & humanized operate panel.
  • Intelligent avoidance system to wash all kinds of car types.
  • Main technology and machine design from Japan.
  • Many kinds of washing ways to meet different car wash needs.
  • Hop-dip galvanized steel frame keep the whole machine anti-rust.

Specifications

Overall dimensions1550x3600x3050mm
Assembling range11000x4300x3300mm
Moving range 11000x4300mm
Available size for car5400x2100x2100mm
Available car to washcar/jeep/coach within 10seats
Washing time2’45″(1 rollover)/5’20″(2 rollover)
Car wash capacity15-20cars/hour
Mains voltage3PHASE AC380V /50HZ
Total power15 KW
Water supplyDN25mm/Waterflow rate ≥ 80L/min
Air pressure0.75-0.9Mpa/Airflow rate ≥ 0.1m³/min
Water/electricity consumption85L/Car, 0.46kw/Car
Shampoo consumption15ml/Car
Water wax consumption20ml/Car

3 Brushes+2 tyre brush+4 Blowers

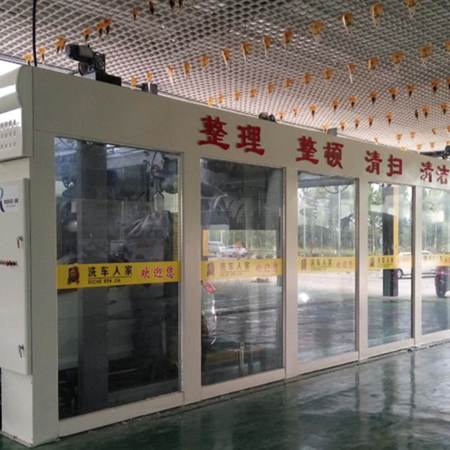

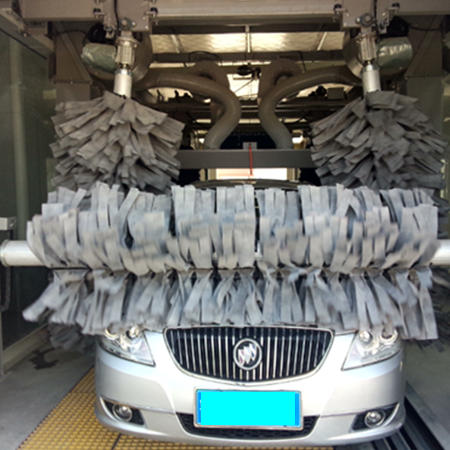

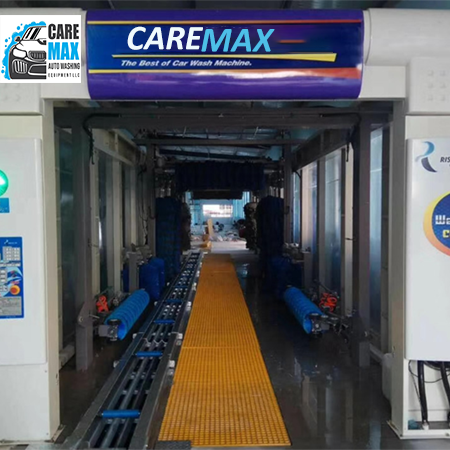

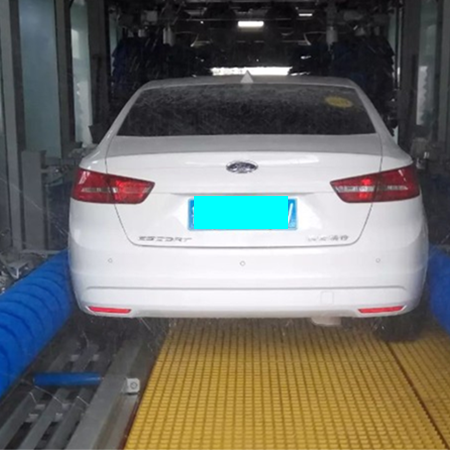

Automatic Tunnel Car Wash Machine

turnal-carwash

Automatic Tunnel Car Wash System

Features

  • High pressure water pre-washing and chassis sprinkling.
  • Shampoo(Foams) sprinkling and wax washing systems.
  • Nine brushes with foam material and lifelong warranty.
  • Four blowers dry the car body completely and precisely.
  • Three drying brushes with chamois leather.
  • Two wheel wash brushes to wash the tires.
  • PLC control system & humanized operate pannel.
  • Intelligent avoidance system to wash all kinds of car types.
  • Main technology and machine design from Japan.
  • Electroplated conveyor equipped with the tire corrector device.
  • Hop-dip galvanized steel frame keep the whole machine antirust.
  • One year warrany.
  • Technician to customer site installation and maintenance training.

Specification

Overall dimensions16380x3800x3440mm
Assembling range17580x3800mm
Site requirement35000x5800mm
Available size for car5200x2150x2200mm
Available car to washcar/jeep/coach within 10seats
Washing time1’12″/car
Car wash capacity45-50cars/hour
Mains voltage3PHASE AC380V /50HZ
Total power39.32
Water supplyDN25mm/Waterflow rate ≥ 200L/min
Air pressure0.75-0.9Mpa/Airflow rate ≥ 0.6m³/min
Water/electricity consumption180L/Car, 0.6kw/Car
Shampoo consumption10ml/Car
Water wax consumption12ml/Car

9BRUSHES+4BLOWER+3DRYING BRUSHES / 2 WHEEL BRUSH, TOTAL 14 BRUSHES.

Single arm Touchless Car Wash Machine HP-232

touchless-carwash-232

Single arm Touchless Car Wash Machine HP-232

Features

  • Hot-dip galvanized steel frame can keep the whole machine stable and long life use.
  • 360 degree smart wash technology
  • Automatic chemical mixing system
  • Built-in quick air drying system
  • Ultra sonic sensor detecting system
  • Intelligent parking guide system

Specifications

Machine DimensionLWH=760033153100Vehicle typeCar/Minibus/SUV/Coach within 7 seats
Installation SpaceLWH=760035003300Wash sizeWash size
Suppy Station“LWH=4000*1500″Wash speed3′-5′
Mains voltage3PHASE AC380V/50HZ Power consumption0.65Kw/h-0.75Kw/h
Max Working Power22KW, max 42kwWater consumption165L/Car
Wash pressure7-12MKPChemicals consumption7mL-12mL
Air supply0.5MPa

Core Components

Highpressre pumpGermany pinflTouch screenTaiwan Delta
BearingJapan NSKPLCTaiwan Delta
Sonic sensorGermany PEPPERL+FUCHSProximity sensorGermany PEPPERL+FUCHS
Electric partsFrance schneider

Functions

  1. High  pressure water.
  2. Shampoo spray
  3. Wax Spray
  4. Dryer Function.

Double arm touchless car wash machine HP-280

touchle-hp-280

Double arm touchless car wash machine HP-280

Features:

  • Intelligent horizontal highpressure nozzles, following car surface automatically
  • Double arm can overlap wash car head, side and tail.
  • Intelligent dryers, follow car surface automatically
  • Tyre rim brushes with rotating highpressure water
  • Different washing models to choose
  • Hot galvanized steel structure, anti rust

Parameter

Machine body dimension1660x3620x3100mm
Occupied land11000x3700x3600mm
Max car dimension5500x2400x2200mm
Car tpyecar/jeep/coach within 10seats
Washing time5mins
Washing speed12cars/hour
Voltage3PHASE AC380/220V /50HZ/60HZ
Power25KW
Water requirementDN25mm/Waterflow rate≥ 150L/min
Air pressure0.75-0.9Mpa/Airflow rate≥ 0.1m³/min
Consumption200L/Car, 0.7kw/Car
Shampoo50ml/Car
Water wax12ml/Car

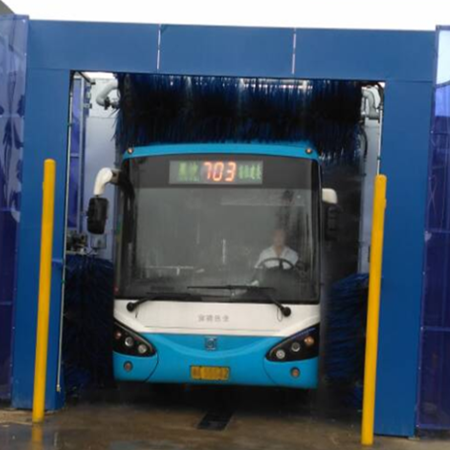

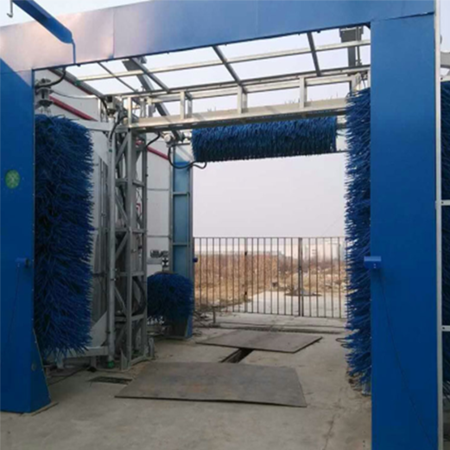

Drive Through Bus Washer CB-750

drive-through-buswasher

Drive Through Bus Washer CB-750

Main Features

  • Can identify the car model with photoelectric and approaching sensors .
  • Hot-dip galvanized frame can keep the whole machine stable and long life use.
  • PLC electronic control panels system can easy to operate and maintain.
  • High quality control systems, motors and pumps from Japan can keep  the car wash running with great performance in any conditions.
  • With on-site installation and operate training for free   and long time quality guarantee to whole car wash.

Specifications

Overall dimensionsL6241xW5729xH4780mm
Install sizeL8000*W60000mm
Available size for vehicleW3000x3200mm
Washing speed60vehicle/hour
Power request3PHASE AC380V /50HZ
Water requestDN25,flow rate≥120L/min
Air request0.75~0.9MPa（7.5~9kg/cm²）
Water consumption120-180L/vehicle

Accessories and Parts List

Standard partsQuantityRemarks
Shampoo sprinkling system1 setAvailable
High pressure water device1setavailable
Vehicle bottom wash1 setoptional
Brush5 sets–
Intelligent equipment data–available
Fault self-detection–available
Frame1 sethot-dip galvanized
Electronic control system1 setMK cabinet
brush motor–ITALY SITI
Water pump–China
